NEC Cordless Phone for the DS1000/2000

Click to Enlarge

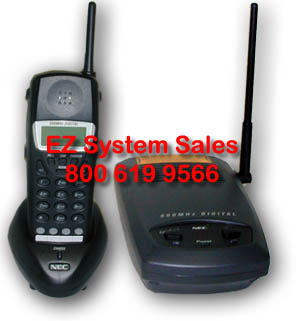

Finally. A cordless digital telephone for the NEC DS1000 and DS2000 phone system performs all the functions the desk top units do.

Features: 4 programmable function buttons, call hold button, call conference button, call transfer button, 2 line liquid crystal display, ring volume control, 30 separate channels

$319.00 add to cart

03.14.00 Version or Higher Software Required

FAQ: How do I tell what software version I have on my phone system?
Answer: Press the 8 button on the key pad of a DS1000/2000 display telephone and read the first line of the display.

Overview: The DS1000/2000 900 MHz Cordless Telephone is a 900 MHz narrow band FM cordless telephone that provides mobility and convenience for those who spend much of there work day away from there desk. Fully integrated with the DS1000/2000 system, DS1000/2000 900MHz Cordless Telephone offers many standard features such as call coverage, Hotline, and Voice Mail, complemented by 4 fully programmable function keys (with LED's), the DS1000/2000 900 MHz Cordless Telephone achieves a whole new level of convenience and mobility. An easy to read 16-character 2 line display LCD Display (with 4 statur icons), volume controls a rechargeable Nickel Metal Hydride, and a handy belt clip round out the elegant and affordable DS1000/2000 900 MHz Cordless Telephone.

Specifications:

Transmission and Reception
Transmission Method	900 MHz Digital Narrow Band FM
Receive/Transmit Frequency	902-905 MHz & 925-928 MHz
Frequency Control	Phase Lock Loop
PCM Type	32 Kps ADPCM (Adaptive Differential Pulse Code Modulation
Bandwidth	± 50 KHz
Data Transmission Speed	688BPS
Transmission Power	.4 m W approx
Simultaneous Conversation Channels	30
Handset Battery
Type	3.6V 750 mAh Nickel Metal Hydride Rechargeable Battery Pack
Charge Time	5-6 Hours Max. to Full Charge
Life	Up to 7 hours talk time Up to 5 days standby
Power Requirements
Power Supplies Charger (supplied)	9VDC (yellow color-coded connector)
Power Supplies Base (supplied)	10VDC (black color coded connector)
Mechanical
Handset Size	2" W x 1 1/4" D x 5 1/2" H (with out antenna)
Handset Weight	Approximately 5.1 oz.
Base Size	4 1/4" W x 7 5/8" D x 2 1/4 H (with out antenna)
Base Weight	Approximately 13.3 oz.
Charger Size	3 1/4" W x 3 1/2" D x 2 1/16 H
Charger Weight	Approximately 2.3 oz.
